Xb20-RD

Anywhere

The UNHCR’s Handbook for Emergencies states that disaster relief housing should provide inhabitants with protection from the weather and extreme temperature, security, safety, privacy, and storage. Nevertheless, most refugees are housed in tents that fall short of the UNHCR goals and deteriorate within three years. Xb20-RD units are designed for permanence, as the average stay at refugee camps has now reached 20 years. Xb20-RD units are durable, flexible, and designed for resiliency – a place to call home. PV film on the roof panels generates enough energy for interior LED lighting and cell phone charging.

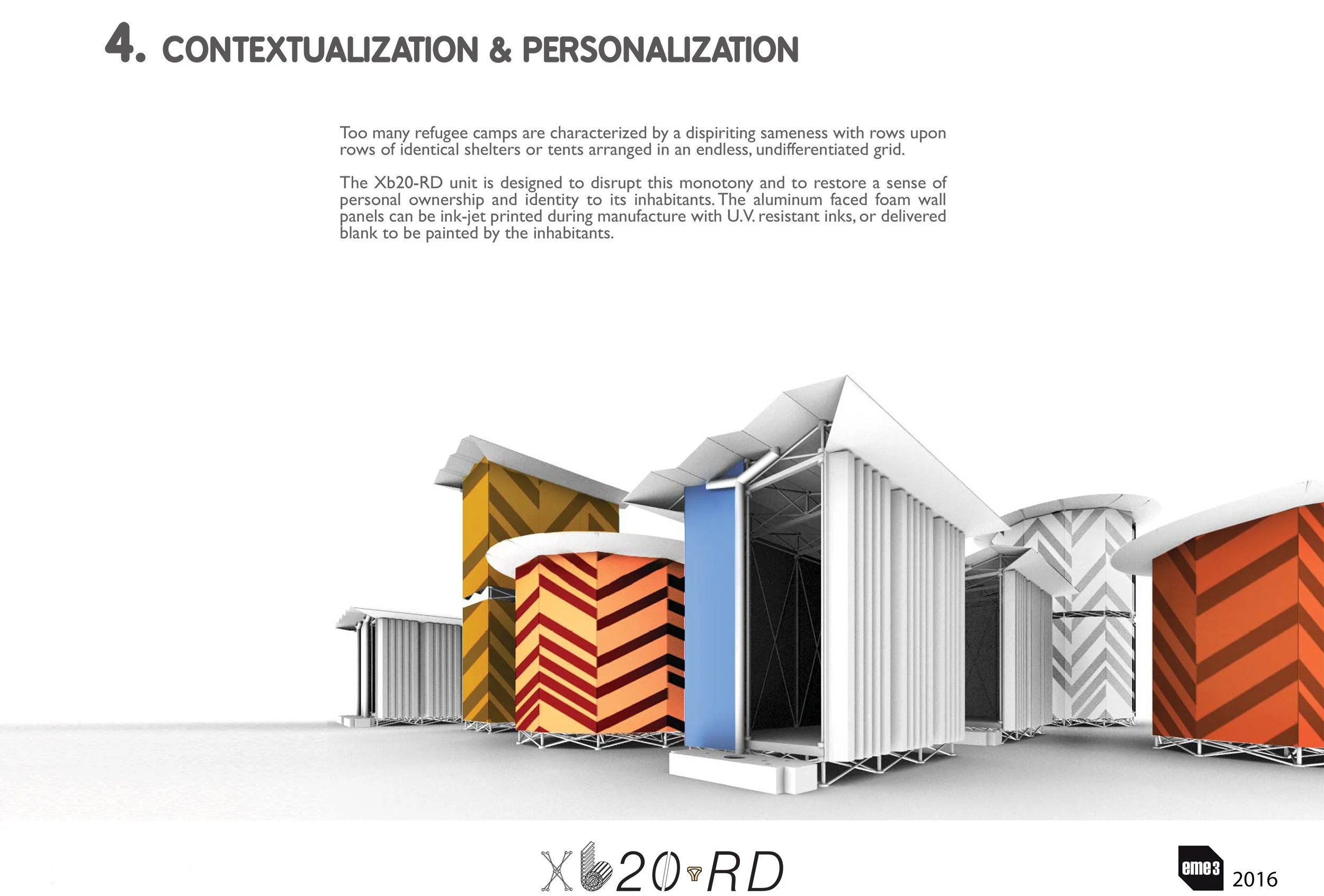

Xb20-RD units are shipped flat with six major pre-assembled and expandable modular components. The systems are simple, passive, flexible, and suitable for remote and diverse contexts, climates, solar orientations, and terrains. The smooth, white wall panels can easily be personalized and contextualized with vibrant colors, patterns, and decorations.

Xb20-RD units come in two different plan configurations, rectangular and round (dodecagon). The rectangular unit measures 2m x 3m for up to three occupants, and the round unit measures 4m in diameter for a larger family size. Both types are stackable for a larger clan size or for higher density development in tight urban sites.

The main components of the Xb20-RD units are made with bamboo—a strong, lightweight, fast-growing, durable, and renewable material. Xb20-RD units promote social enterprise utilizing bamboo as an economic driver for regions at the bottom of the economic pyramid.

This is a SLO Made project; see the making process.

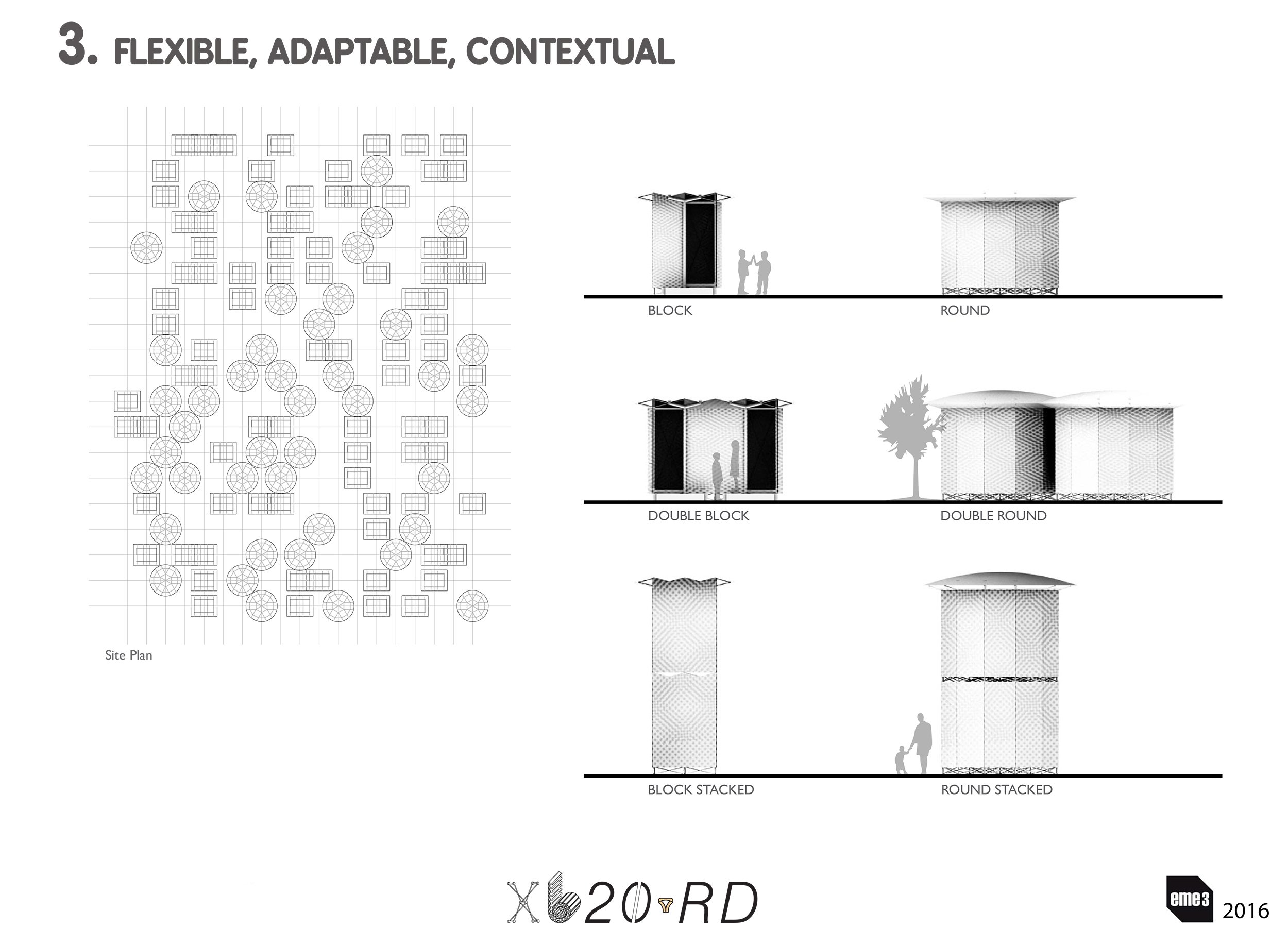

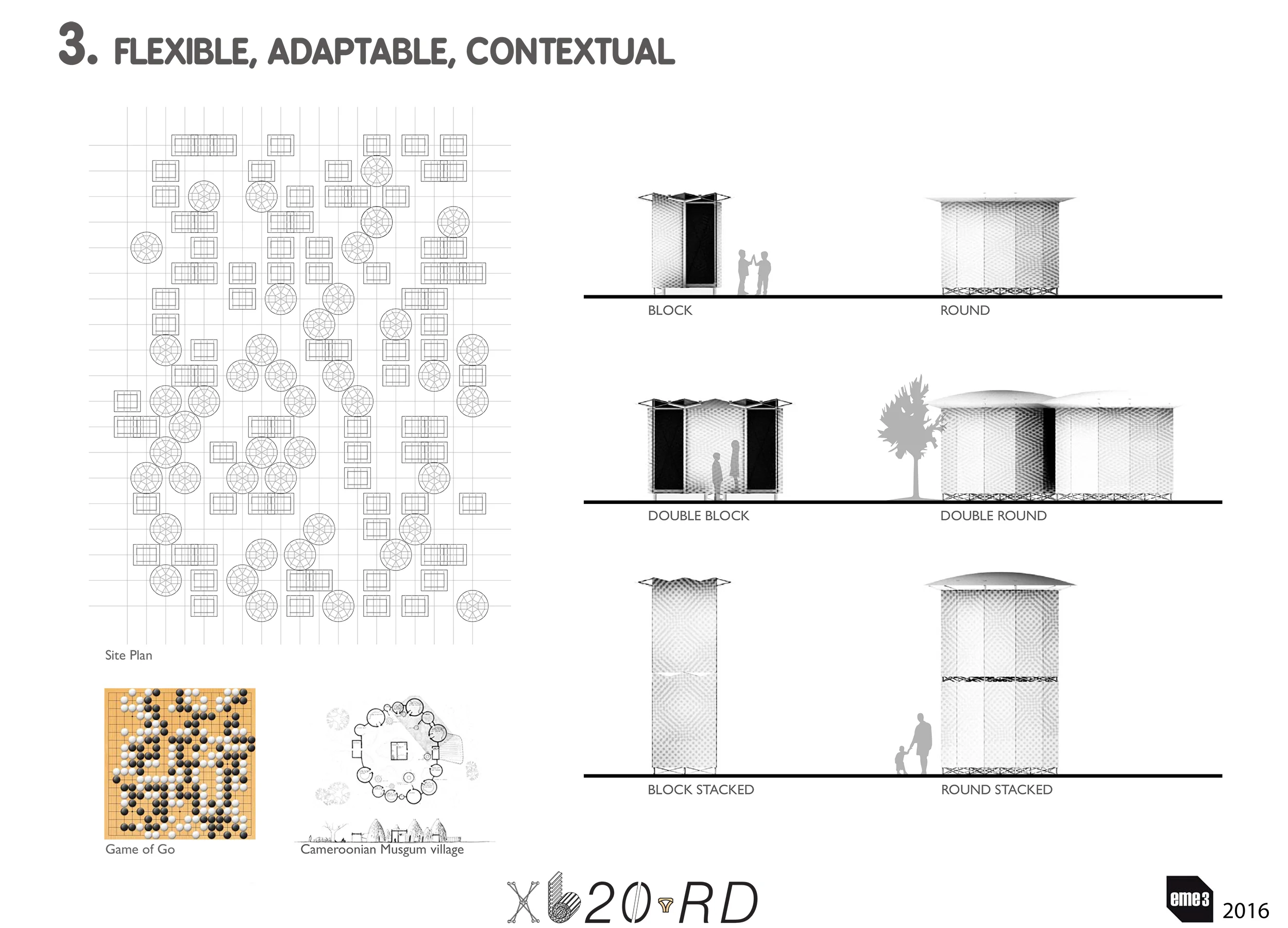

03 ADAPTATION_2500px.jpg

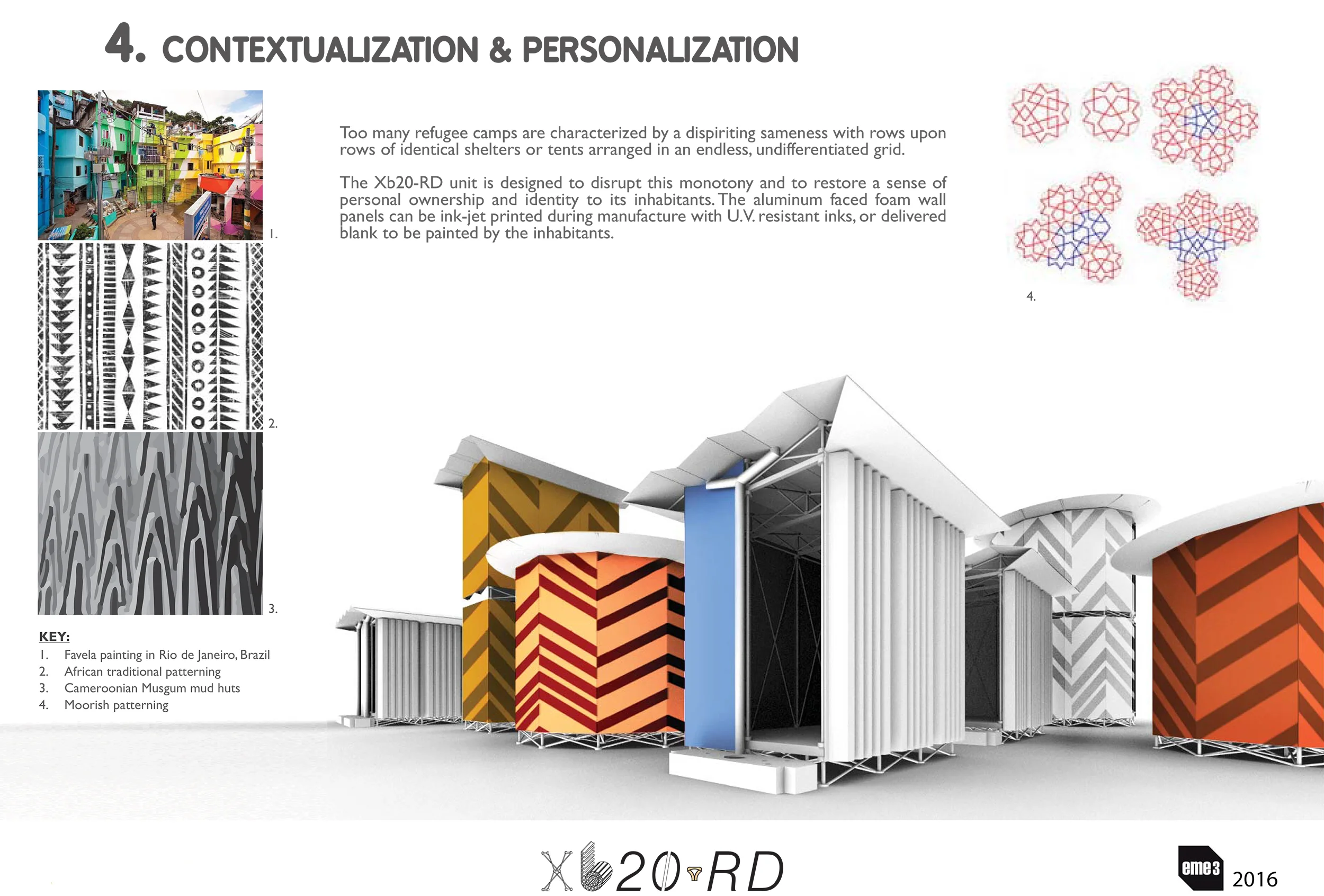

04 CUSTOMIZATION - PATTERNING.jpg

05 A-B; PLANS. SECTIONS. ELEVATIONS.png

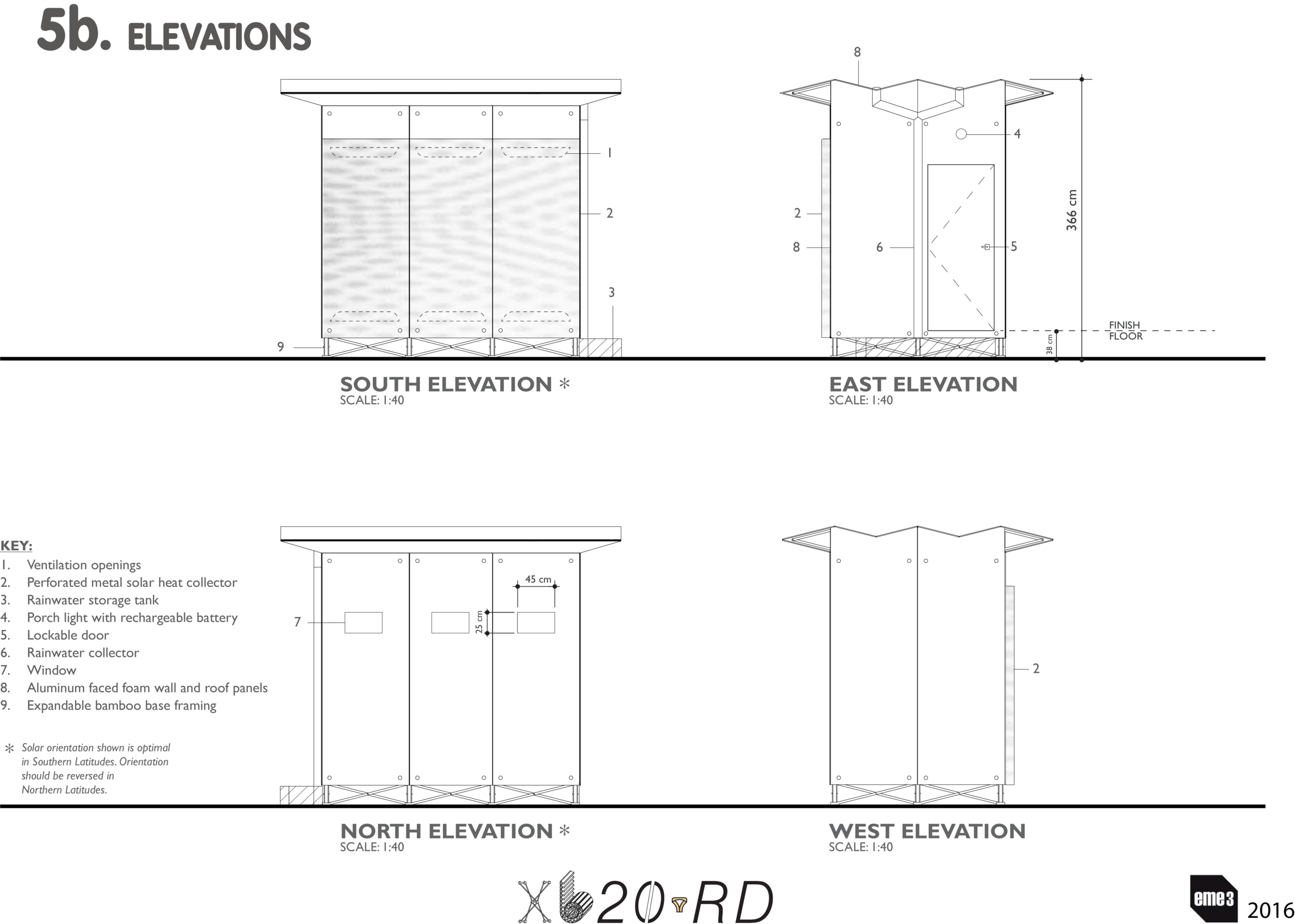

05-B ELEVATIONS.png

06-A EXANDABLE PRE-ASSEMBLED COMPONENTS.png

06-B ASSEMBLY.png

07 DWELLING SYSTEMS.png

08 BAMBOO& ECONOMIC EQUITY & ENVIRONMENTAL SUSTAINABILITY.png

09_EXPANDABLE BAMBOO COMPONENTS.png

10a_BAMBOO STRUCTURE & UNIVERSAL CONNECTOR DETAIL.png
